FOAMGLAS® insulation
Consistent performance over time
Everlasting is a long-term promise. So we put our promise to the test. FOAMGLAS® insulation fully retains its strength, thermal performance and all further exceptional properties. The following test cases prove it.
The conclusions of the FIW were unequivocal
- No ageing effects were evident, either in terms of a loss of thermal performance or lower compressive strength.
- After nearly half a century in situ, FOAMGLAS® roof insulation demonstrated the same performance properties as the day it was originally installed.
- Long-Term benefits of using FOAMGLAS® insulation within a flat roof.
- FOAMGLAS® insulation is an excellent long-term investment. After several decades it maintains its properties and delivers the same thermal performance as it did when the building was first completed. The roof energy efficiency is constant, therefore building energy costs are minimized.
- Roof maintenance is kept to a minimum, as there is no need to replace the FOAMGLAS® insulation - after 20 or 30 years a new roof waterproofing may be needed, it can be removed, and a new waterproofing system is installed over the original insulation.

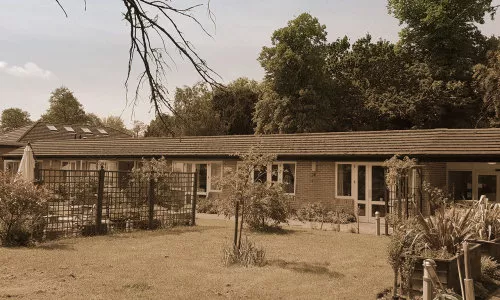

Care home
in Burcot, UK
Installed 1989 – 29 years old at the time of the test
Flat roof on wooden substructure
FOAMGLAS® T2, 90 mm
Reference values of 1989
Lambda: 0,045 ± 5% W/mK
Compressive strength: ≥ 500 kPa
FIW test result of today
Lambda initial: 0,048 W/mK
Lambda dried: 0,048 W/mK
Compressive strength: 1018 kPa
Main conclusions
Results confirm same mechanical properties of the samples – even after approximately 30 years. Samples remain consistent high thermal insulation performance.
Result: FOAMGLAS® T2 maintains its properties consistently throughout time
Sample is taken from the flat roof of British care home building under 3rd party supervision.
Bavarian Brewery
in Lieshout, Netherlands
Installed 1986 – 32 years old at the time of the test
Flat roof on wooden substructure
FOAMGLAS® T2, 90 mm
Reference values of 1986
Lambda: 0,045 ± 5% W/mK
Compressive strength: ≥ 500 kPa
FIW test results of today
Lambda initial: 0,043 W/mK
Lambda dried: 0,043 W/mK
Compressive strength: 1102 kPa
Main conclusions
After 3 decades samples show even thermal performance. Compressive strength remains identical at over 1,000 kPa.
Result: FOAMGLAS® T2 and its properties do not age over time
Sample is taken from the flat roof of a Bavarian Brewery by a 3rd party commissioner (SECO / BCCA).

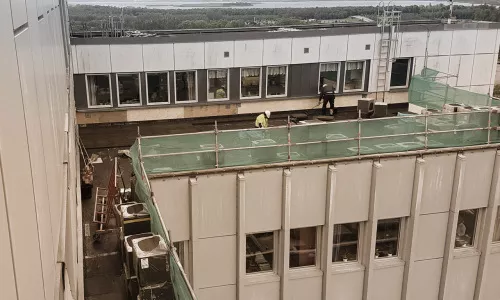

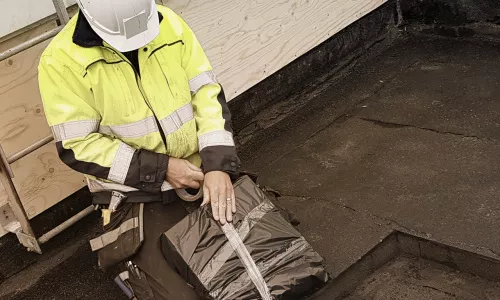

Hospital
in Kristianstad, Sweden
Installed 1973 – 45 years old at the time of the test
Compact roof on concrete deck
FOAMGLAS® S3, 50 mm
Reference values of 1973
Lambda: 0,049 ± 5% W/mK
Compressive strength: ≥ 500 kPa
FIW test results of today
Lambda initial: 0,047 W/mK
Lambda dried: 0,047 W/mK
Compressive strength: 1480 kPa
Main conclusions
Samples still show the same thermal performance as more than 40 year before. Compressive strength of 1480 kPa remains unchanged until today.
Result: FOAMGLAS® S3 and its properties do not age over time
Sample is taken from the terrace roof of a Swedish hospital by the applicant.
Hospital
in Kristianstad, Sweden
Installed 1973 – 45 years old at the time of the test
Compact roof on concrete deck
FOAMGLAS® S3, 50 mm
Reference values of 1973
Lambda: 0,049 ± 5% W/mK
Compressive strength: ≥ 500 kPa
FIW test results of today
Lambda initial: 0,053 W/mK
Lambda dried: 0,052 W/mK
Compressive strength: 567 kPa
Main conclusions
After over 40 years samples show identical thermal performance. Compressive strength remains steady.
Result: Promised properties of FOAMGLAS® S3 in 1973 are still complying today
Sample is taken from the flat roof of a Swedish hospital under 3rd party supervision.

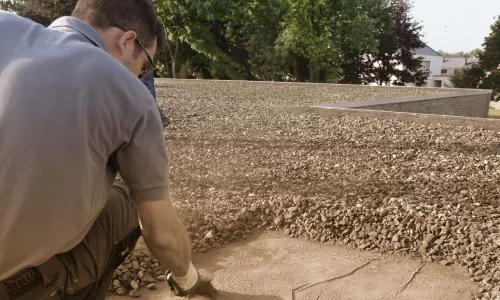

Administrative Building
in Hasselt, Belgium
Installed 1978 – 40 years old at the time of the test
Compact roof on concrete deck
FOAMGLAS® T2, 50 mm
Reference values of 1978
Lambda: 0,047 ± 5% W/mK
Compressive strength: ≥ 500 kPa
FIW test results of today
Lambda initial: 0,047 W/mK
Lambda dried: 0,047 W/mK
Compressive strength: 1480 kPa
Main conclusions
Nearly 40 years later samples still show identical thermal performance. Product remains reliable and its high compressive strength.
Result: For nearly 4 decades FOAMGLAS® T2 is performing consistently at the same quality
Samples are taken from the flat roof of a Belgian administrative building by a 3rd party (SECO / BCCA).
