FOAMGLAS® PERINSUL HL

FOAMGLAS® PERINSUL HL

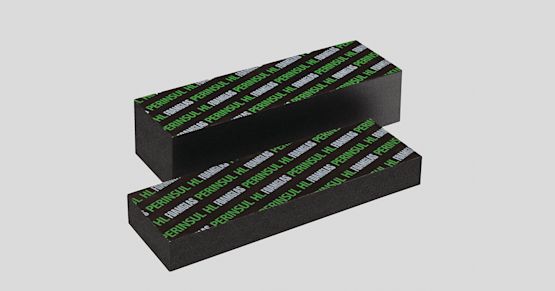

FOAMGLAS® PERINSUL HL is a very high density speciality product used to eliminate structural thermal bridging. The upper and the lower surface of the insulation are bitumen coated and laminated with a PE/Glass Fleece Composite, compatible with mortar. The upper side is green.

Width
90 - 240 mm
Density
200 kg/m³
Pressure
CS ≥ 2.75 MPa
λ value
0.058 W/mK

Applications

Floor-wall base element to eliminate structural thermal bridging and rising damp:

  • Parapet walls
  • Product type PERINSUL

    Thermal bridges (or cold bridges) can be responsible for up to 20% of the heat loss from a building. Ensuring continuity of the building’s thermal envelope is critical to eliminating ‘cold spots’, which are possible sources of condensation, damp and mould growth.

    FOAMGLAS® PERINSUL acts as a thermal break at junction details and other thermal bridges, maintaining continuity of insulation. The elements have a high load-bearing capacity, are dimensionally stable, and contribute to damp proofing measures due to being completely watertight.

    Grade PERINSUL HL

    Capable of bearing the structural loads of a three storey building, FOAMGLAS® PERINSUL HL is laid in a mortar bed and eliminates thermal bridging at junction details. It is a unique load-bearing insulation element, and has been tested in accordance with Eurocode 6 specifically to bear loads imposed by structural masonry.
