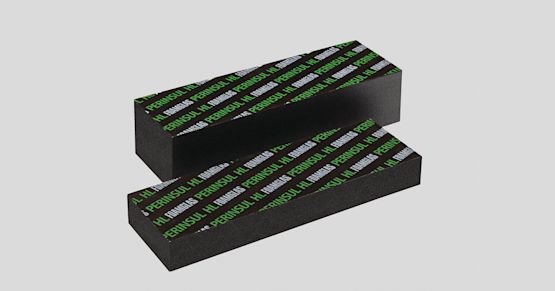

FOAMGLAS® PERINSUL HL

FOAMGLAS® PERINSUL HL

FOAMGLAS® PERINSUL HL is a very high-density insulation product specifically designed to eliminate structural thermal bridging. The upper and lower faces of the insulation block are bitumen coated and covered with a green printed PE/glass fleece composite liner, compatible with masonry mortar. FOAMGLAS® PERINSUL HL must be installed in a single, linear course.

Width
100 - 215 mm
Thickness x Length
65 - 140 x 450 mm
Density
200 kg/m³
Compressive strength
CS ≥ 2.9N/mm2
λ value
0.068 W/mK

Applications

Thermal blocks to be used for:

  • floor-wall base element
  • beneath timber or metal frame sole plates
  • parapet upstands
  • structural junctions
  • Explore NBS Specifications

    Click on the ‘Add to Spec’ or ‘Download BIM Object’ buttons to streamline your project planning.

    In need of Expert Advice?

    Product type PERINSUL

    The closed cell nature of PERINSUL HL means
    - it will retain its low thermal conductivity
    - it resists the passage of moisture and vapour into the structure, contributing to other damp proofing measures and
    protecting timber and steel components.

    Cellular glass insulation does not shrink or degrade over time, retaining its performance for the life of the building and has the potential for re-use in future projects.

    Grade PERINSUL HL

    Capable of bearing the structural loads of a three storey building, FOAMGLAS® PERINSUL HL is laid in a mortar bed and eliminates thermal bridging at junction details. It is a unique load-bearing insulation element, and has been tested in accordance with Eurocode 6 specifically to bear loads imposed by structural masonry.

    DOWNLOAD PRICELIST

    Perinsul HL

    Dedicated website
