FOAMGLAS® BOARD F

FOAMGLAS® BOARD F

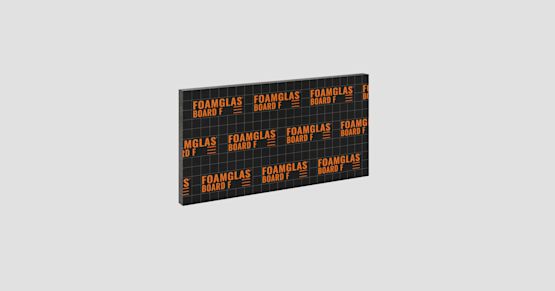

FOAMGLAS® BOARD F consists of FOAMGLAS® F slabs bonded together and covered with a lining. The top side of the insulation board is lined with a PE-glass fleece composite (black with an orange print) and the bottom side is lined with a white glass fleece.

Thickness
40 - 180 mm
Length x Width
1200 x 600 mm
Density
165 kg/m³
Compressive strength
CS ≥ 1600 kPa
λ value
0.050 W/mK

Applications

Insulation to be used for high compressive strength requirements:

  • below ground and perimeter insulation
  • floor insulation in industrial environments
  • foundation slabs
  • Explore NBS Specifications

    Click on the ‘Add to Spec’ or ‘Download BIM Object’ buttons to streamline your project planning.

    In need of Expert Advice?

    Product type Boards

    Our cellular glass insulation boards measure 1200x600mm, and have a glass fleece facing, to aid adhesion and bonding. Boards are used throughout the entire internal and external building envelope, and are particularly useful upon profiled metal roof decks. The board insulation core comprises of cellular glass and so meets Euroclass A1 standards, only the thin fleece facing adds a combustible element, resulting in the overall board product being rated as E. The boards are popular for larger areas and faster installation.

    Grade F

    Offering the highest compressive strength of any FOAMGLAS® product, FOAMGLAS® F is used above or beneath floor slabs, and upon roofs where the compressive loads are high. A typical example would be regular heavy traffic such as trucks and emergency vehicles. It has a thermal conductivity (lambda value) of 0.050 WW/(m·K) and a max compressive strength of 1600 kPa. Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.
