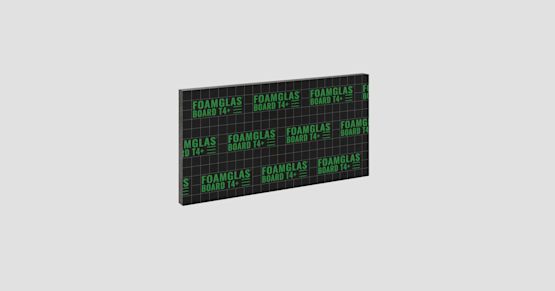

FOAMGLAS® BOARD T4+

FOAMGLAS® BOARD T4+

FOAMGLAS® BOARD T4+ consists of FOAMGLAS® T4+ slabs bonded together. The upper side is covered with a PE/Glass Fleece Composite, the bottom with Glass Fleece; the top side is green, the bottom side is white.

Thickness
40 - 200 mm
Length x Width
1200 x 600 mm
Density
110 kg/m³
Pressure
CS ≥ 600 kPa
λ value
0.041 W/mK

Applications

Insulation of:

  • Floors
  • Façades (cavity wall insulation, f.i. between 2 concrete shells)

    • Product type Boards

    Our cellular glass insulation boards measure 1200x600mm, and have a glass fleece facing, to aid adhesion and bonding. Boards are used throughout the entire internal and external building envelope, and are particularly useful upon profiled metal roof decks. The board insulation core comprises of cellular glass and so meets Euroclass A1 standards, only the thin fleece facing adds a combustible element, resulting in the overall board product being rated as E. The boards are popular for larger areas and faster installation.

    Grade T4+

    Suitable for a wide range of building envelope applications - floors, flat roofs, and roofs with a metal standing seam covering - FOAMGLAS® T4+ offers a thermal conductivity of 0.041 W/(m·K) and a UDL compressive strength of 600 kPa. Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.
