FOAMGLAS® F

FOAMGLAS® F

FOAMGLAS® F

Thickness
40 - 180 mm
Size
600 x 450 mm
Density
165 kg/m³
Pressure
CS ≥ 1600 kPa
λ value
0.050 W/mK

Applications

Highest compressive strength requirements, insulation of:

  • Flat roofs (f.i. trafficable decks, parking decks)
  • Floors
  • Product type Slabs

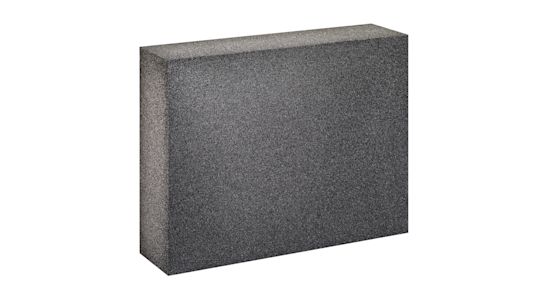

    Our cellular glass insulation slabs measure 600 x 450mm. Slabs are used throughout the entire internal and external building envelope. They meet Euroclass A1 test standards, and are easy to handle, cut and trim.

    Grade F

    Offering the highest compressive strength of any FOAMGLAS® product, FOAMGLAS® F is used above or beneath floor slabs, and upon roofs where the compressive loads are high. A typical example would be regular heavy traffic such as trucks and emergency vehicles. It has a thermal conductivity (lambda value) of 0,050 W/(m·K) and a max compressive strength of 1600 kPa. Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.
