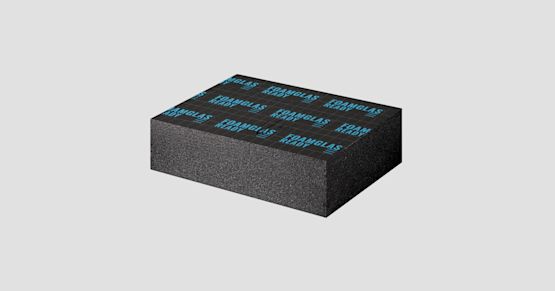

FOAMGLAS® READY TAPERED T4+

FOAMGLAS® READY TAPERED T4+

FOAMGLAS® READY TAPERED T4+ consists of FOAMGLAS® T4+ slabs which are tapered/cut to falls and the upper face is lined with a PE foil to allow direct torch-on waterproofing membranes. A central arrow stamped on the upper surface indicates the direction of fall.

Thickness
50 - 200 mm
Length x Width
600 x 450 mm
Density
110 kg/m³
Compressive strength
CS ≥ 600 kPa
λ value
0.041 W/mK

Applications

Tapered/cut to falls insulation allowing for torch-on waterproof membranes:

  • warm roof applications including concrete, timber and metal substrates
  • heavy load roofs including vehicle access and equipment plant
  • podium insulation

    • Product type TAPERED

    Using the original Architect's CAD drawings, the FOAMGLAS® tapered insulation schemes are individually calculated and prepared for the specific building application such as roof or floor. This process ensures the correct drainage is achieved. The insulation is specifically factory machined and numbered to suit its relative position within the designed tapered insulation scheme.

    Grade T4+

    Suitable for a wide range of building envelope applications - floors, flat roofs, and roofs with a metal standing seam covering - FOAMGLAS® T4+ offers a thermal conductivity of 0.041 W/(m·K) and a UDL compressive strength of 600 kPa. Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.
