FOAMGLAS® TAPERED S3

FOAMGLAS® TAPERED S3

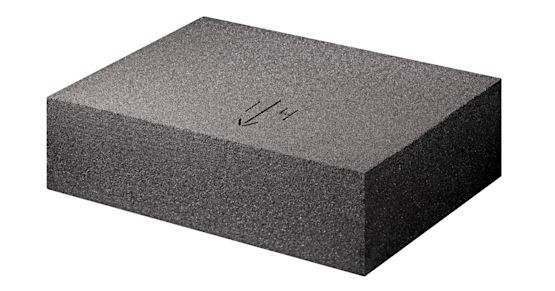

FOAMGLAS® TAPERED S3 consists of FOAMGLAS® S3 slabs which are tapered/cut to falls during manufacturing. A central arrow stamped on the upper surface indicates the direction of fall.

Thickness
50 - 200 mm
Length x Width
600 x 450 mm
Density
123 kg/m³
Compressive strength
CS ≥ 900 kPa
λ value
0.045 W/mK

Applications

Tapered/cut to falls insulation for for high compressive strength requirements:

  • warm roofing systems including concrete, timber and metal substrates
  • heavy load roofs including vehicle access and equipment plant
  • podium insulation

    • Explore NBS Specifications

    Click on the ‘Add to Spec’ or ‘Download BIM Object’ buttons to streamline your project planning.

    In need of Expert Advice?

    CONTACT US

    Product type TAPERED

    Using the original Architect's CAD drawings, the FOAMGLAS® tapered insulation schemes are individually calculated and prepared for the specific building application such as roof or floor. This process ensures the correct drainage is achieved. The insulation is specifically factory machined and numbered to suit its relative position within the designed tapered insulation scheme.

    Grade S3

    With a thermal conductivity (lambda value) of 0.045 W/(m·K) and a max compressive strength of 900 kPa, FOAMGLAS® S3 is the insulation of choice for floors and roofs with a load-bearing capacity suitable for mid-sized vehicles and maintenance machines. Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.
