FOAMGLAS® BOARD T3+

FOAMGLAS® BOARD T3+

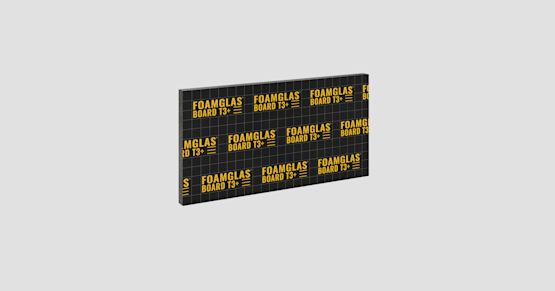

FOAMGLAS® BOARD T3+ consists of FOAMGLAS® T3+ slabs bonded together and covered with a lining. The top side of the insulation board is lined with a PE-glass fleece composite (black with a yellow print) and the bottom side is lined with a white glass fleece.

Thickness
50 - 200 mm
Length x Width
1200 x 600 mm
Density
95 kg/m³
Pressure
CS ≥ 500 kPa
λ value
0.036 W/mK

Applications

Insulation for:

  • external walls and cavity insulation
  • internal insulation, including floors, walls and soffits
  • below ground and perimeter insulation
  • Product type Boards

    Our cellular glass insulation boards measure 1200x600mm, and have a glass fleece facing, to aid adhesion and bonding. Boards are used throughout the entire internal and external building envelope, and are particularly useful upon profiled metal roof decks. The board insulation core comprises of cellular glass and so meets Euroclass A1 standards, only the thin fleece facing adds a combustible element, resulting in the overall board product being rated as E. The boards are popular for larger areas and faster installation.

    Grade T3+

    Provides all of the benefits of FOAMGLAS® cellular glass insulation - long lasting thermal performance, excellent compressive strength and non-combustibility. T3+ is extremely popular for applications upon walls, soffits and roofs. With a thermal conductivity (lambda value) of 0.036 W/(m·K). FOAMGLAS® T3+ is available in thicknesses from 50 mm to 200 mm.

    Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.
