FOAMGLAS® BOARD S3

FOAMGLAS® BOARD S3

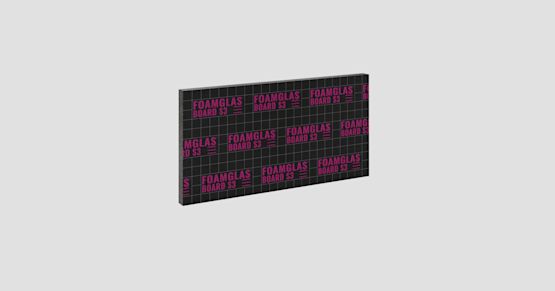

FOAMGLAS® BOARD S3 consists of FOAMGLAS® S3 slabs bonded together. The upper side of the insulation board is lined with a PE/Glass Fleece Composite, the bottom with Glass Fleece; the top side is purple, the bottom side is white.

Thickness
40 - 200 mm
Length x Width
1200 x 600 mm
Density
130 kg/m³
Pressure
CS ≥ 900 kPa
λ value
0.045 W/mK

Applications

High compressive strength requirements, insulation of:

  • Floors
  • Foundation slabs
  • Product type Boards

    Our cellular glass insulation boards measure 1200x600mm, and have a glass fleece facing, to aid adhesion and bonding. Boards are used throughout the entire internal and external building envelope, and are particularly useful upon profiled metal roof decks. The board insulation core comprises of cellular glass and so meets Euroclass A1 standards, only the thin fleece facing adds a combustible element, resulting in the overall board product being rated as E. The boards are popular for larger areas and faster installation.

    Grade S3

    With a thermal conductivity (lambda value) of 0.045 W/(m·K) and a max compressive strength of 900 kPa, FOAMGLAS® S3 is the insulation of choice for floors and roofs with a load-bearing capacity suitable for mid-sized vehicles and maintenance machines. Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.
