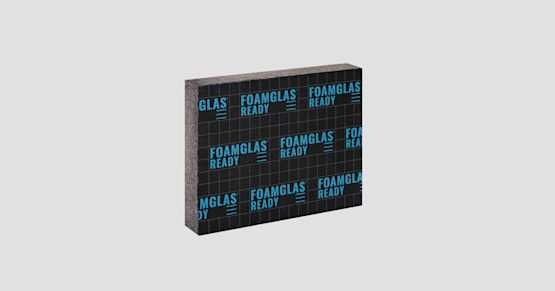

FOAMGLAS® READY F

FOAMGLAS® READY F consists of a FOAMGLAS® F slab. The upper surface is coated with a bitumen layer and covered with a PE foil. This allows for direct torch-on of waterproofing sheets.

Thickness

40 - 180 mm

Size

600 x 450 mm

Density

165 kg/m³

Pressure

CS ≥ 1600 kPa

λ value

0.050 W/mK

Applications

Insulation system allowing for torch-on roofing. Highest compressive strength requirements.Insulation for:

Flat roofs (cold bonding on concrete using PC® 500)

Flat roofs (f.i. trafficable decks, parking decks)

Belowgrade walls (perimeter)

Product type READY

Available in slab dimensions of 600x450mm, or board dimensions of 1200x600mm. READY insulation products have a factory applied top layer suitable to accept site applied torch on membranes. When installed with hot or cold adhesives, and adhesive filled joints, READY products offer an insulation solution for the life of the building.

Grade F

Offering the highest compressive strength of any FOAMGLAS® product, FOAMGLAS® F is used above or beneath floor slabs, and upon roofs where the compressive loads are high. A typical example would be regular heavy traffic such as trucks and emergency vehicles. It has a thermal conductivity (lambda value) of 0.050 WW/(m·K) and a max compressive strength of 1600 kPa. Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.
