FOAMGLAS® PC® 700K System
FOAMGLAS® insulation prefabricated shapes reinforced with an appropriate cementitious compound and supporting scrim for use in many hot and high temperature service applications.
PC® 700K system combines the benefits of FOAMGLAS ® ONE™ Insulation with a two-component inorganic mortar and a glass fabric reinforcement for superior high temperature or cyclical performance. The mortar is based on a specially formulated glass powder, fillers and a modified silica dispersion. The cloth is a wide-mesh, alkaline-resistant glass fabric. These fabric and mortar components are offered by Owens Corning or are available as pre-applied system.
Service temperature range:
Direct exposure: -196 °C up to +400 °C (-320 °F up to +752 °F)
System Operating Temperature: -268 °C up to +482 °C (-450 °F up to +900 °F)
Application areas:
- Low-Temperature piping
- Medium and high-temperature piping
- Heat-transfer fluid piping
- Cyclical piping
- Live application
- Retrofit or maintenance
Benefits:
- Wide service temperature range
- Resistant to thermal shock
- May extend the working temperature beyond that of a traditional single layer system.
- May reduced the number of insulation layers
- Improves high temperature or cyclical system performance
- Direct application to hot surfaces
System Components:

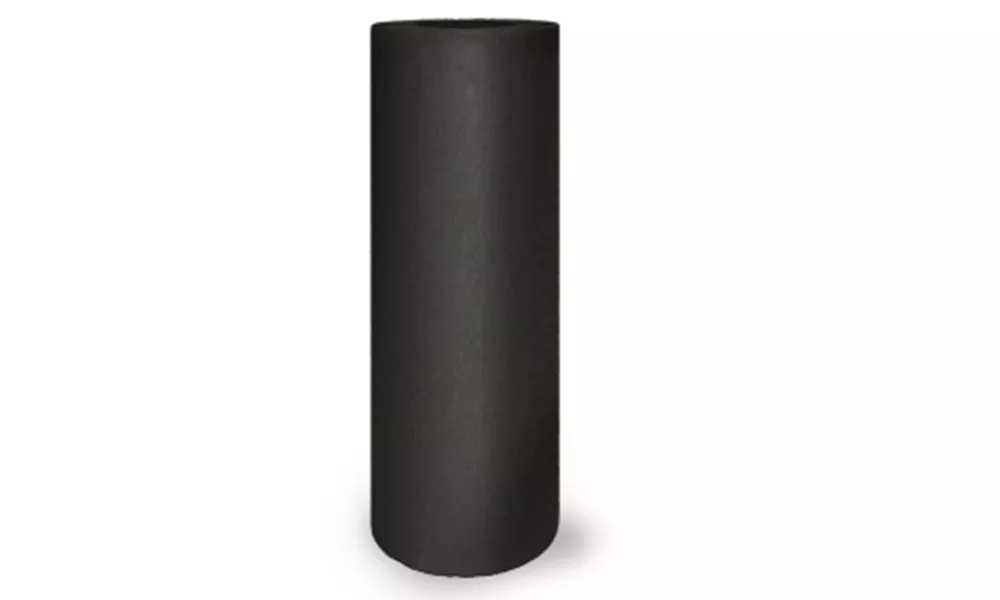

- Prefabricated FOAMGLAS® ONE™ Insulation
- PC® 80 Mortar
- PC® 150 Fabric
