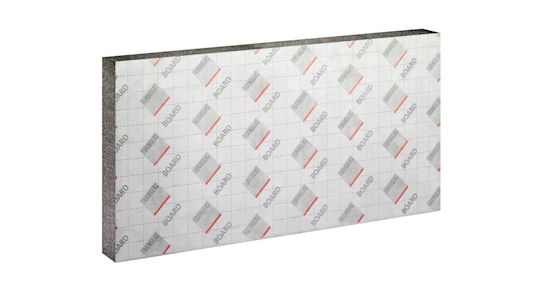

FOAMGLAS® ROOF BOARD G2 T3+

FOAMGLAS® ROOF BOARD G2 T3+ consists of FOAMGLAS® T3+ slabs bonded together with bitumen and covered with white glass fleece liner on both sides. The lower side of the board is lined with a white glass fleece. The lining allows adhering a second FOAMGLAS® layer or membrane with cold PU adhesive.

Thickness

50 - 200 mm

Length x Width

1200 x 600 mm

Density

95 kg/m³

Pressure

CS ≥ 500 kPa

λ value

0.036 W/mK

Applications

Insulation for:

warm roofing systems with cold applied waterproofing

suitable for concrete slabs, timber and metal decks and special substrates

Product type ROOF BOARD G2

Faced both sides with a glass fleece to aid cold adhesive bonding, ROOF BOARD G2 is compatible with single ply membranes and other waterproofing systems where no hot works or naked flames are allowed. Available in board sizes of 1200x600mm.

Grade T3+

Provides all of the benefits of FOAMGLAS® cellular glass insulation - long lasting thermal performance, excellent compressive strength and non-combustibility. T3+ is extremely popular for applications upon walls, soffits and roofs. With a thermal conductivity (lambda value) of 0.036 W/(m·K). FOAMGLAS® T3+ is available in thicknesses from 50 mm to 200 mm.

Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.
