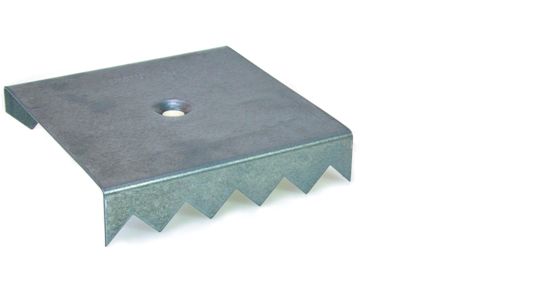

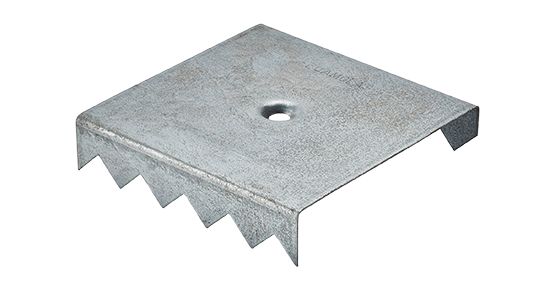

PC® SP 150/150 P serrated fixing plates, perforated
Serrated fixing plates to eliminate thermal bridging for for curtain-walled, rear-ventilated façade systems
The PC® SP 150/150 serrated fixing plate has the following dimensions: 150 x 150 mm (perforated with optional 10.2 or 14 mm diameter hole). 1.5mm thick. The edges incorporate 30mm deep serrated teeth. They are made from hot-dip galvanised steel Z275.
Thickness
1,5 mm
Size
150 x 150 mm
PC® SP 150/150 P serrated fixing plates are used to minimise thermal bridging and provide a fastening system for curtain-walled, rear-ventilated façade systems.
The perforation is optionally available with Ø = 10.2 or 14 mm.
