FOAMGLAS® READY T3+

FOAMGLAS® READY T3+

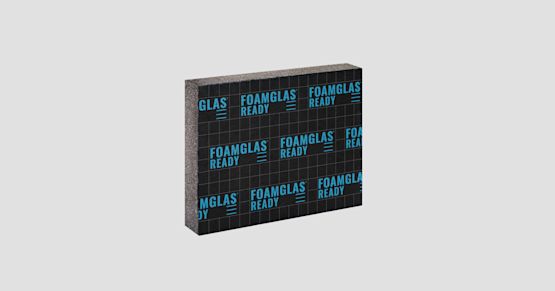

FOAMGLAS® READY T3+ slabs are FOAMGLAS® T3+ slabs coated with a bitumen layer and lined with a PE foil to allow direct torch-on waterproofing membranes.

Thickness
50 - 200 mm
Length x Width
600 x 450 mm
Density
95 kg/m³
Compressive strength
CS ≥ 500 kPa
λ value
0.036 W/mK

Applications

Roofing insulation allowing for torch-on waterproof membranes:

  • warm roof applications (flat and pitched) including concrete, timber and metal substrates
  • podium insulation

    • Explore NBS Specifications

    Click on the ‘Add to Spec’ or ‘Download BIM Object’ buttons to streamline your project planning.

    In need of Expert Advice?

    CONTACT US

    Product type READY

    Available in slab dimensions of 600x450mm, or board dimensions of 1200x600mm. READY insulation products have a factory applied top layer suitable to accept site applied torch on membranes. When installed with hot or cold adhesives, and adhesive filled joints, READY products offer an insulation solution for the life of the building.

    Grade T3+

    Provides all of the benefits of FOAMGLAS® cellular glass insulation - long lasting thermal performance, excellent compressive strength and non-combustibility. T3+ is extremely popular for applications upon walls, soffits and roofs. With a thermal conductivity (lambda value) of 0.036 W/(m·K). FOAMGLAS® T3+ is available in thicknesses from 50 mm to 200 mm.

    Compressive strength requirements for any application should always be confirmed with a structural engineer to ensure the correct product specification.
