Above ambient tank wall and roof
Thermal insulation tank wall and roof solutions for tanks operating at above ambient temperatures. Our tank wall and roof systems will limit heat transfer and provide mechanical, moisture and corrosion resistance so that process control is assured.

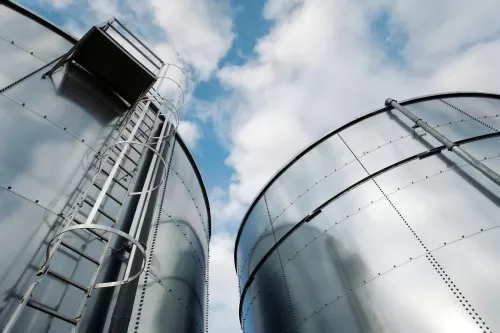

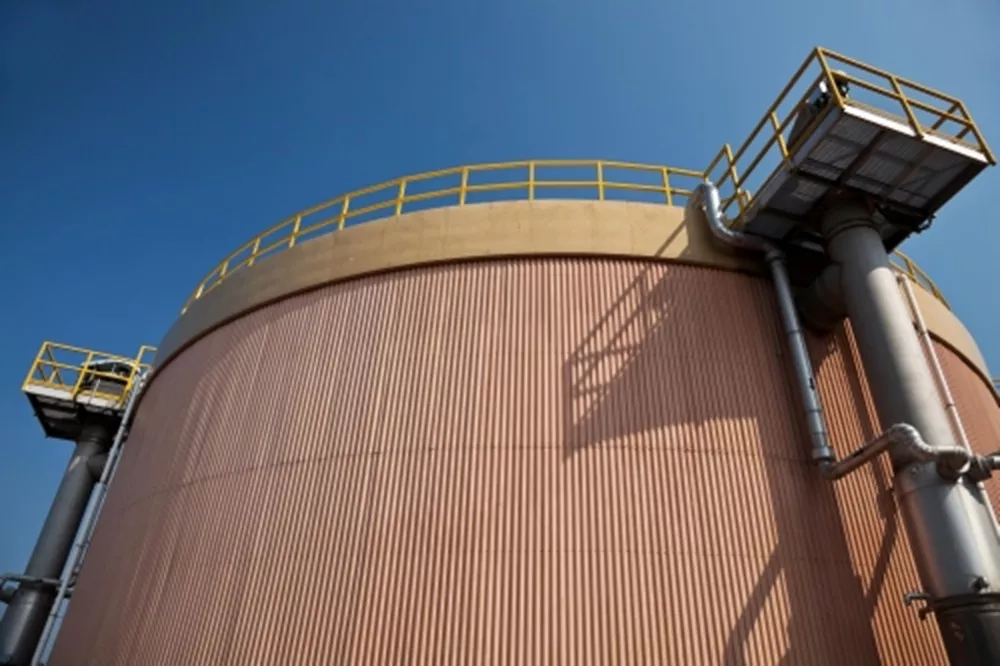

Storage tanks are used to hold a variety of organic liquids or gases including raw materials, intermediates, final products or usable byproducts. Significant energy is lost to the environment due to hot storage tanks not having proper insulation.
Without a reliable insulation system, storage tanks can lose energy, increase cost and put employees at risk. The growing worldwide demand for chemical products and proper storage and handling makes energy efficiency and safety of storage tanks even more important.
For tanks operating at a temperature only slightly higher than ambient temperatures, installing a thermal insulation system is often overlooked. However, a well performing insulation system for your tank walls and roof will help save energy, lower maintenance costs and improve worker safety around hot storage tanks.
The temperature difference between the outside temperature and the temperature inside of the tank can vastly differ depending environmental conditions.
Even with tanks that are operating at slightly higher temperature than the outside temperature, the tank walls and roof are areas that are susceptible for heat transfer and energy loss. Therefore, it is imperative to have a good thermal insulation system installed to reduce energy loss and costs.
The impermeable closed cell nature of FOAMGLAS® insulation will also help limit ingress of moisture and possible corrosion under insulation (CUI) that could cause deterioration of your storage tanks. FOAMGLAS® insulation is also resistant to most chemicals and acids to help protect the system should a leakage occur.

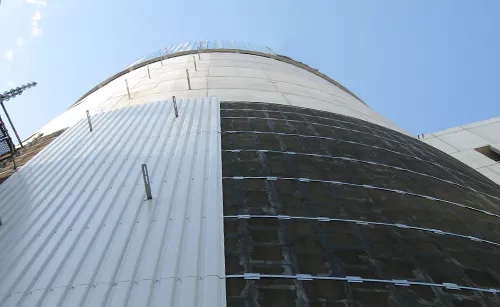

- Single or double layer system of FOAMGLAS® insulation.
- The insulation system shall be fully bonded to the substrate with PC® adhesive appropriate for the application conditions.
- Coating or cladding appropriate for the environmental conditions shall be installed to protect insulation system from weather and mechanical damage.
